Android 8.0 4GB RAM car radio for Mazda CX-5 2017

Payment Type: T/T,Paypal,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 10 Days

Basic Info

Model No.: kd-9514

Type: Car Radio

Combination: Radio Tuner

Placement: Dashboard

Certification: FCC, RoHS, CE

Voltage: 12/24V

Audio Output: Digital Audio Coaxial

Format: MP3

Size: 9

HD Screen: 1024*600

Main Frenqency: 1.6GHz

Screen: Capacitive Multi-touch Screen

Warranty: 12 Month

Wifi: Yes

OS: Android 8.0 System

CPU: Rockchip PX5 Cortex A53, 8 Core


Nand Flash: 32 GB

Additional Info

Packaging: 6KGS/Set 360*260*330MM/gift box

Productivity: 20000/month

Brand: KLYDE

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 350000/year

Certificate: CE FCC

Product Description

Android car DVD for Mazda CX-5 2017

1.KLYDE Electronics Co., Ltd. is a professional high-tech enterprise specialized in developing,
manufacturing and selling Android car dvd. We are the earliest development of android system
and our android is the most stable. Now our latest products is android  car dvd with 8 core/ 8.0 8 64
GB, DSP,TPMS,DAB,PARROT BT,etc. We always keep improving & developing products to
meet client`s requirements. We have established business relationships with many esteemed
clients from Japan, Europe, South America, the Middle East and Southeast Asia, etc .

Quality is our soul . we always do our best for you .

2. The specifications of this android car DVD for Mazda CX-5 2017
are as follows:

OS : Android 8.0 system

TFT drive IC : Rockchip px5

CPU: Rockchip PX5,cortex-A53,Octa core

Loader:  SHINNY D-28HX-PWW-53X


Pick up : HITACHI 1200HX

Flash: 32GB

Motor drive : MABUCHI

Radio: NXP 6686

Amplifier IC:  TDA7851


DVD decoder IC : Sunplus 8202VGQ

Screen: Capacitive and multi-touch screen

Screen: Hanstar Screen

Video decoder: 1080p HW

Power supply : 4*50w

WIFI: Built in

 Bluetooth: BC5

DVR: USB Camera(pc standard)

Resolution: 1024*600

Multi-media Parameters Radio Parameters
Music format: MP3/WMA/AAC/RM/LFAC.ect

Frequency range: FM 76.0MHz-108.0 MHz

                                AM 52KHz-1620KHz

Video format : Mpeg-1/2/4,h264,h263,vc1,RV,RMVB,DIVX..

Picture format : JPG/BMP/GIF/PNG
DVD Parameters Amplifer Paremeters
Video output range: 1.ov-1.2v(75Ω) Test Voltage 13.8v
Compatible Disc: DVD/DIVX/MP4/MP3/MP1/VCD

Max output power: 4*50w

GPS Parameters WIFI Parameters
Operation systems : Android 8.0 system

Power supply : Vcc-3.3v

Support map : Android 8.0 map

supported IEEE802.11B/G/N compatible WLAN

Main frequency : 1.6GHz

Interface type : USB2.O

Map solution :1024*600

Frequency: 2.4-2.48 4GHz

RF Power :15dBM

3. HD Screen Car radio Player for Mazda CX-5 2017  .The radio sensitivity setting is high, will receive a sound, the table is not clear, but if the sensitivity is low, it can automatically filter out is not clear, if the received FM radio normal. the radio also support TPMS, OBD2, DAB, DSP,DVR, Rear camera , Parrot BT ETC.

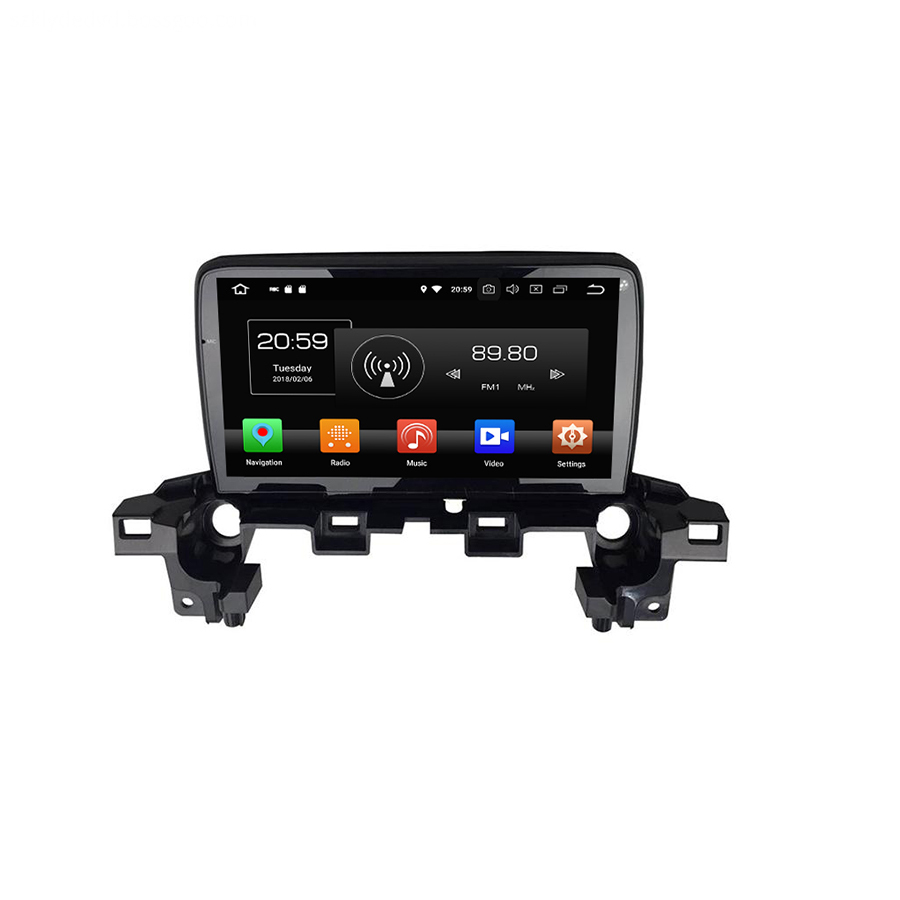

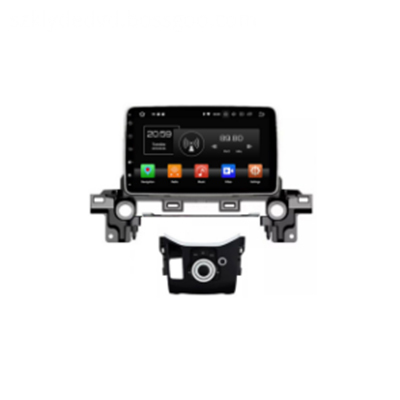

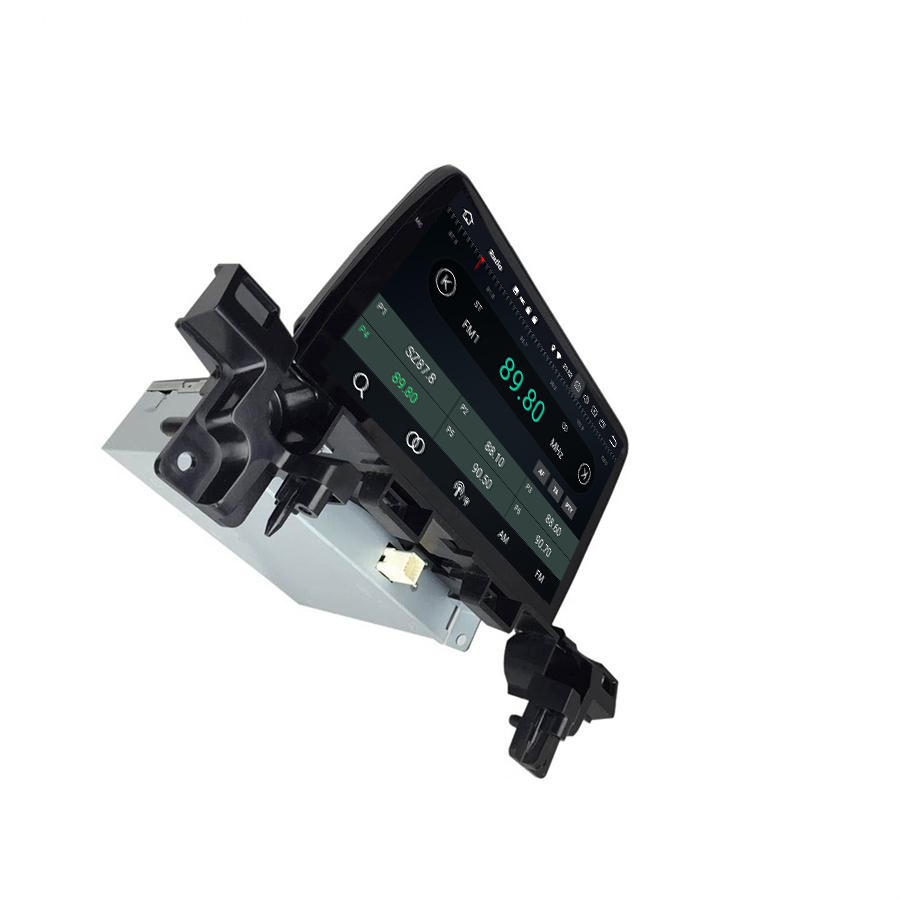

Pictures of Mazda CX-5 2017 car DVD:

Cx 5

Cx 5

CX-5 2017

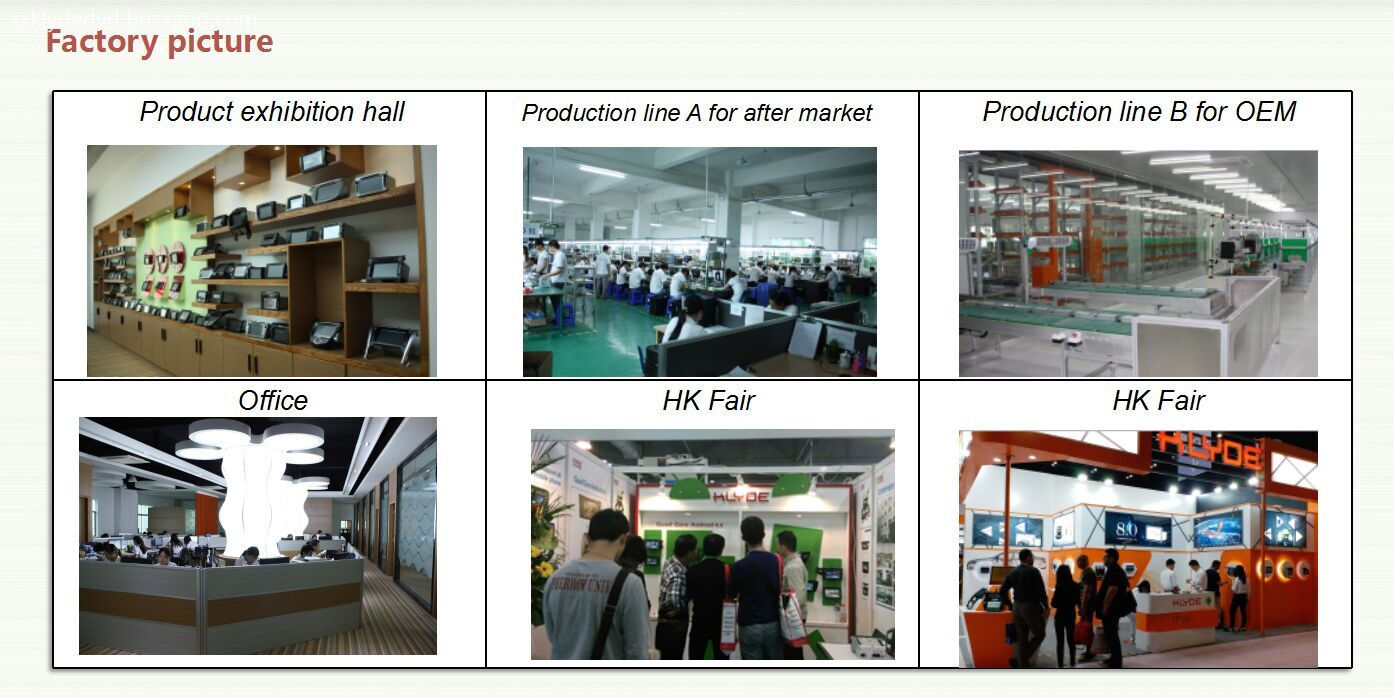

Factory and sample room picture of Klyde:

Insertpic A1b1 05 27 23 03 15

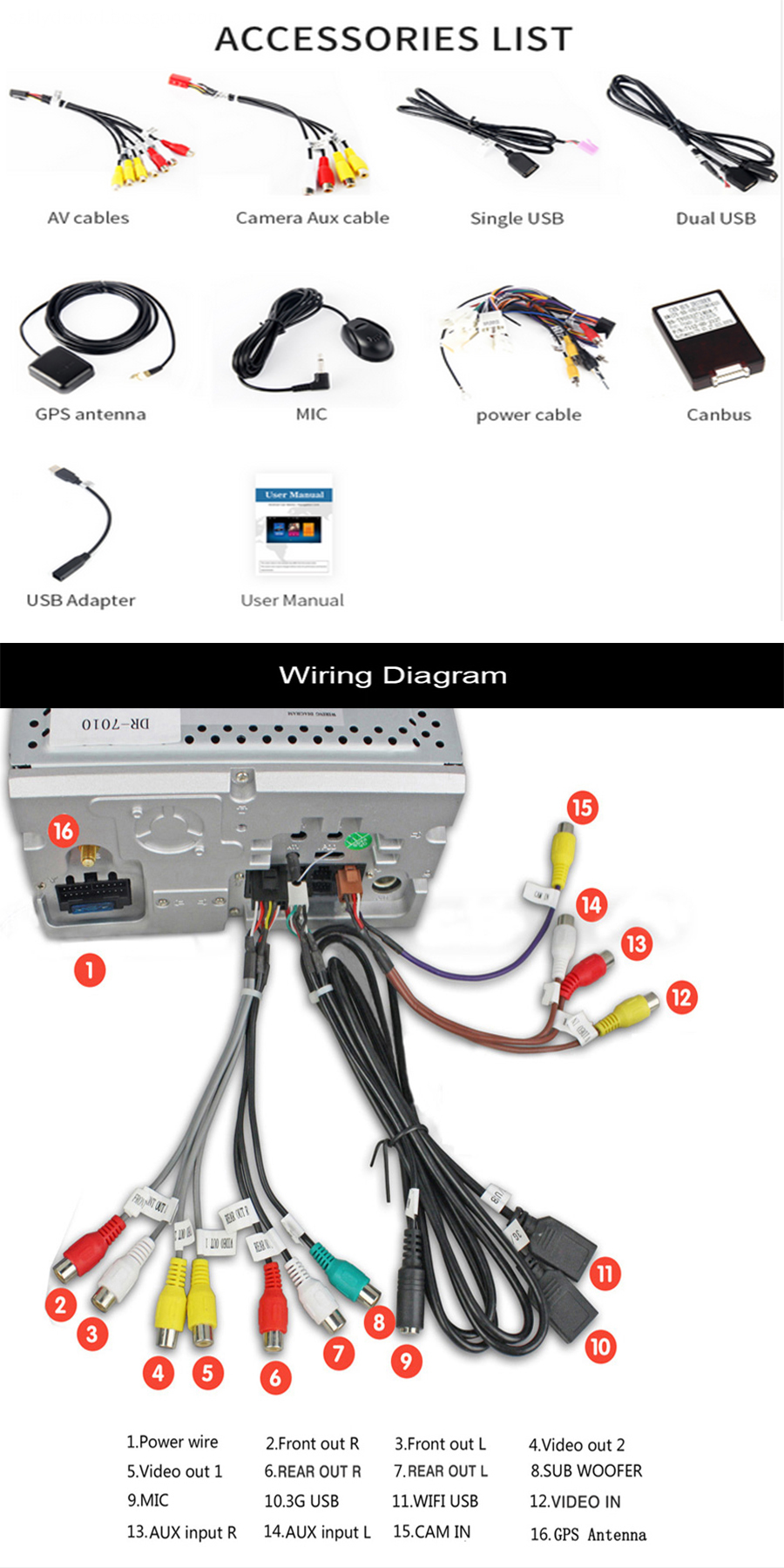

Accessories of Suzuki Wagon R  car DVD



Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Skype: szklyde7
Wechat: 13750403489
